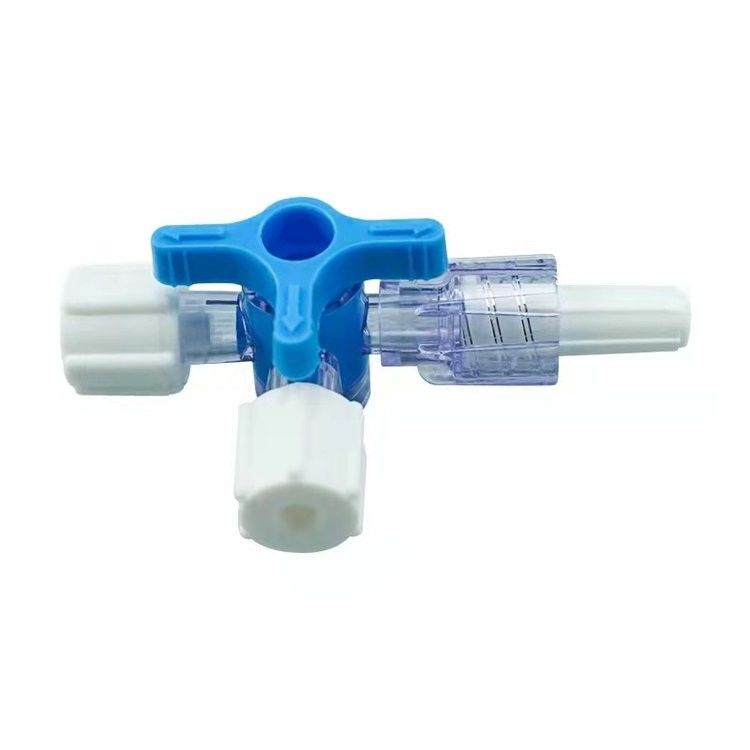

Medical Three way Valve for Infusion set

Medical Three-way Valve for Infusion set

In the medical field, a three-way valve is commonly used in infusion therapy or intravenous (IV) therapy. It is a specialized valve designed to control the flow of fluids during the administration of medications, fluids, or blood products to patients through an IV line.

The medical infusion three-way valve typically has three ports or openings, similar to a standard three-way valve. The ports are labeled as follows:

• Inlet Port: This port is connected to the fluid source, such as an IV bag or syringe, from which the medication or solution is being delivered.
• Patient Port: This port is connected to the patient's IV catheter or tubing, allowing the fluid to flow directly into the patient's bloodstream.
• Access Port: This port serves as an additional pathway and is primarily used for intermittent or secondary infusion. It allows the healthcare provider to introduce additional medications, flush the line, or perform other procedures without disrupting the primary infusion.

The key function of the medical infusion three-way valve is to control the flow of fluids between the inlet port and the patient port. It allows the healthcare provider to switch between different fluid sources, adjust the flow rate, or temporarily stop the infusion without disconnecting the IV line from the patient.

The valve typically has different positions that can be selected:

Open Position: In this position, the fluid flows directly from the inlet port to the patient port, allowing the primary infusion to proceed.

Closed Position: This position shuts off the flow of fluid from the inlet port to the patient port, temporarily stopping the infusion. It is useful for preventing accidental flow or when changing IV bags or medications.

Side Port Position: By selecting this position, the healthcare provider can access the side port, allowing for additional medications, flushing, or blood sampling without interrupting the primary infusion.

--What is a 3 way stopcock used for in medicine?

Fluid Administration: The three-way stopcock allows for the simultaneous connection of multiple fluid sources or infusion lines to a single patient. It enables healthcare providers to easily switch between different fluids or medications without disconnecting the IV line from the patient. This is particularly useful in situations where multiple medications or solutions need to be administered concurrently or when rapid fluid resuscitation is required.

Pressure Monitoring: The three-way stopcock is commonly used in invasive monitoring procedures, such as arterial or central venous pressure monitoring. It provides a port to connect pressure monitoring devices, such as transducers or pressure monitoring lines, to measure blood pressure or central venous pressure accurately. The rotating handle allows for real-time monitoring and adjustment of pressure measurements.

Blood Transfusions: During blood transfusions, a three-way stopcock can be utilized to control the flow of blood products between the blood bag, infusion set, and patient. It allows for easy switching between different blood components or adjusting the flow rate during the transfusion process.

Sample Collection: The three-way stopcock facilitates the collection of blood samples for diagnostic testing, such as arterial blood gas (ABG) analysis. By connecting a syringe or sampling device to one of the ports, healthcare providers can conveniently draw blood samples without the need for additional needle insertions.
